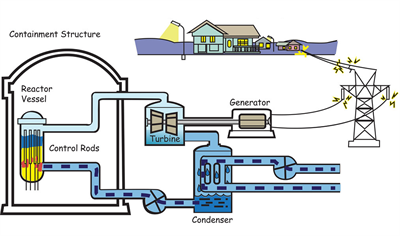

Give the procedure to give the working of a power plant.
Answer variants:
Condensed steam in the turbine and liquefied sodium
in the heat exchanger are circulated through pumps
in the heat exchanger are circulated through pumps
Control rods are lifted in the nuclear reactor until
it goes to the critical stage
it goes to the critical stage
Steam turns the turbine to convert
heat energy into mechanical energy
heat energy into mechanical energy
Sodium vapours heat the water
to convert it to steam
to convert it to steam
Turbine is coupled to an electric generator to
convert mechanical energy into electrical energy
convert mechanical energy into electrical energy
Heat energy in a reactor
vaporises the molten sodium
vaporises the molten sodium
STEP 1:
STEP 2:
STEP 3:
STEP 4:
STEP 5:
STEP 6:
