Lens ray diagram — task. Science TNSB Mentoring, Class 10.

Answer the following:

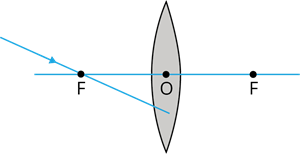

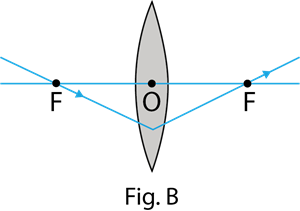

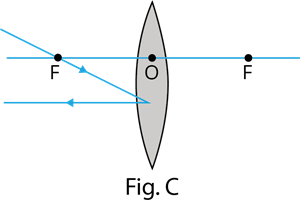

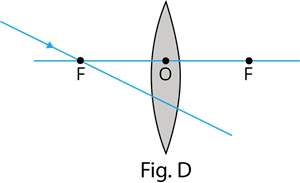

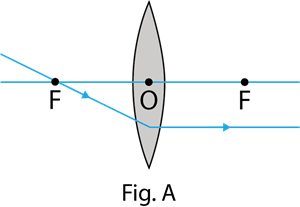

Identify the correct ray diagram for the given incident ray on the lens in the figure.

$YCIND_220926_4499_Light reflection and Refraction_12.png$

$YCIND_220926_4499_Light reflection and Refraction_13.png$
$YCIND_220926_4499_Light reflection and Refraction_14.png$
$YCIND_220926_4499_Light reflection and Refraction_15.png$
$YCIND_220926_4499_Light reflection and Refraction_16.png$
both \(B\) and \(C\)
