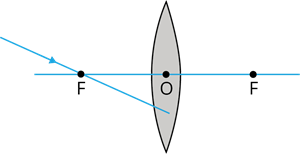

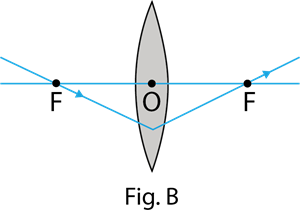

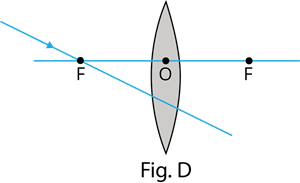

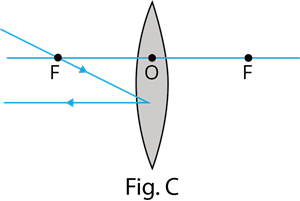

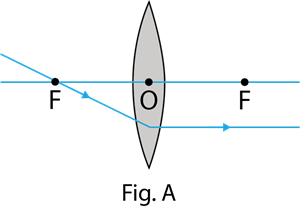

Which of the following ray diagrams is correct for the ray of light incident on a lens shown in figure?
