Construct a triangle \(ABC\) whose measurements are \(AB = 6 \ cm\), \(\angle A = 60^{\circ}\) and \(AC = 5 \ cm\).
Construction:
Step 1: Draw a base line segment \(AB = 6 \ cm\).
Step 2:
Step 3:
Step 4:

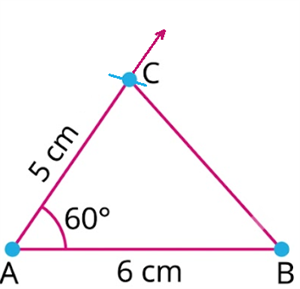

Thus, \(ABC\) is the required triangle.
Answer variants:

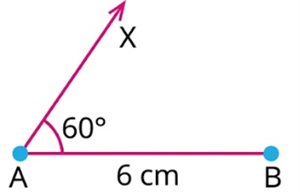

Using a protractor, construct \(\angle XAB = 60^{\circ}\) by drawing the other arm of the triangle.

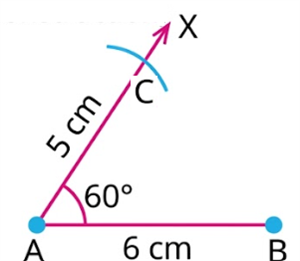

With \(A\) as centre and \(5 \ cm\) as radius, draw an arc which cuts the arm at \(C\).
Join \(BC\).
