Following table shows a frequency distribution for the speed of cars passing through at a particular spot on a high way:

Class interval \((km/h)\) Frequency
\(30 - 40\) 3
\(40 - 50\) 6
\(50 - 60\) 25
\(60 - 70\) 65
\(70 - 80\) 50
\(80 - 90\) 28
\(90 - 100\) 14

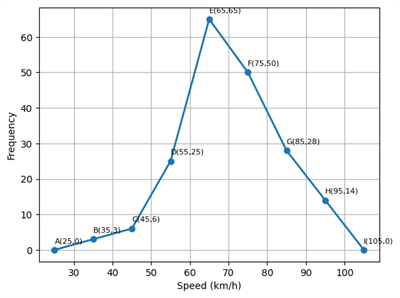

Draw the frequency polygon representing the above data without drawing the histogram. Compute the mid-point of each of the intervals.

Class interval \((km/h)\) Midpoint Frequency
\(30 - 40\) 3
\(40 - 50\) 6
\(50 - 60\) 25
\(60 - 70\) 65
\(70 - 80\) 50
\(80 - 90\) 28
\(90 - 100\)
14
