Describe the steps involved in observing the magnetic field pattern produced by a current carrying circular coil using iron filings with the help of the given diagram.

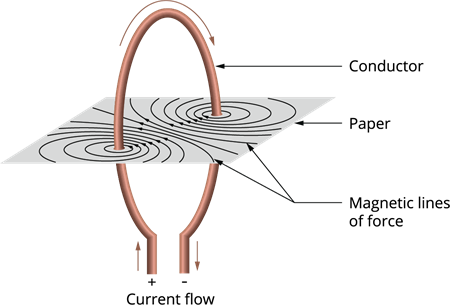

Magnetic field produced by a current-carrying circular coil

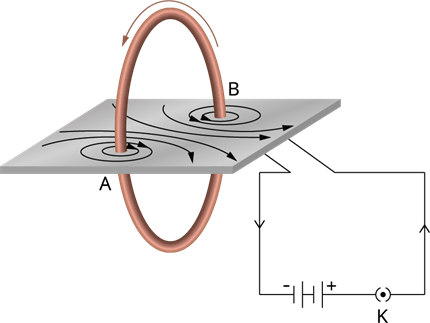

Pattern of the magnetic field produced by a current-carrying circular coil
Observations:
The magnitude of the magnetic field produced by a current-carrying circular wire at its centre is:
Directly proportional to the the circular wire.
Inversely proportional to the the circular wire.
The strength of the magnetic field can be by taking a circular coil consisting of a number of turns of insulated copper wire closely wound together.
If a circular coil has 'n' turns, the magnetic field produced by this current-carrying circular coil will be as large as that produced by a circular loop of a single turn of wire.
