Choose the correct answer for the following question.
Identify the labels of the ray diagram shown in the figure below, when a beam of light passes through a transparent prism. Define the angle of deviation.

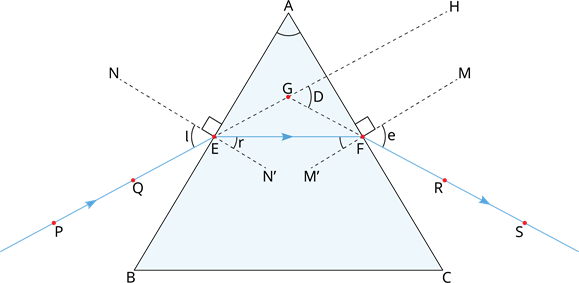

From the figure, Pick and Place the labels of the ray diagram:
Answer variants:
Angle of refraction
Emergent ray
Angle of emergence
Angle of deviation
Refracted ray
Incident ray
Angle of the prism
Angle of incidence
1. \(PE\) -
2. \(EF\) -
3. \(FS\) -
4. \(\angle A\) -
5. \(\angle i\) -
6. \(\angle r\) -
7. \(\angle e\) -
8. \(\angle D\) -
The angle between the and the is called angle of deviation.
