TBQ- Effect of switch positions in a circuit — task. Physics CBSE Live product, Class 7 (2026-27).

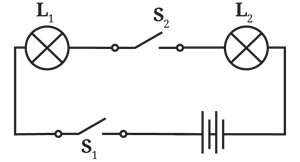

Read the following question to answer based on the circuit:

In which switch position will only lamp L2 glow?

S1 ON S2 OFF
S1 OFF S2 ON
S1 ON S2 ON
Not possible in this circuit
