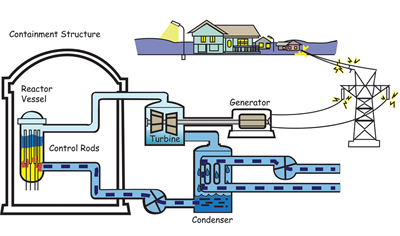

Give the procedure to give the working of a power plant.
Answer variants:
Control rods are lifted in the reactor until
it goes to the critical stage
it goes to the critical stage
Turbine is coupled to an electric generator to
convert mechanical energy into electrical energy
convert mechanical energy into electrical energy
Heat energy in a reactor
vaporises the molten sodium
vaporises the molten sodium
Sodium vapours heat the water in the
heat exchanger to convert it to steam
heat exchanger to convert it to steam
Steam turns the turbine to convert
heat energy into mechanical energy
heat energy into mechanical energy
Condensed steam in the turbine and liquefied sodium
in the heat exchanger are circulated through pumps
in the heat exchanger are circulated through pumps
STEP 1:
STEP 2:
STEP 3:
STEP 4:
STEP 5:
STEP 6:
